In plastic size reduction, blade clearance is not a small setup detail. It is one of the settings that most directly affects cutting quality, heat generation, dust level, motor load, knife wear, and how often the machine needs intervention. Many operators ask for a single “correct” number, but in real production there is no universal gap that works for every material and every machine.
The more practical approach is to treat clearance as a starting range, not a fixed rule. Thin film, soft PE/PP, rigid ABS/PC, thick-wall HDPE parts, and mixed plastic streams do not respond to the same knife setting in the same way. Even with the same material, the final result can change with knife sharpness, rotor rigidity, machine size, screen configuration, contamination level, and installation accuracy.
From a manufacturer’s point of view, the best blade clearance is the one that produces a clean cut with controlled heat, stable amperage, acceptable knife life, and repeatable output. That is why the right question is not only “How many millimeters?” but also “What does the machine tell you after startup?”
When the clearance looks correct but cutting quality still drops, the issue may be blade geometry rather than the gap itself. This guide on how to sharpen granulator blades explains what proper regrinding should restore.
Why Blade Clearance Matters
The gap between the rotor knife and the bed knife controls how effectively the machine shears material instead of tearing, rubbing, or forcing it through the chamber. When the clearance is too wide, the cutting action becomes less precise. Material may stretch before it breaks, cut edges become less consistent, dust can increase, and throughput may become unstable. On soft plastics, a wide gap often creates pulling and smearing rather than a decisive cut.
When the clearance is too tight, the machine may cut aggressively at first, but the risk moves elsewhere. Heat rises faster, knife contact risk increases, energy consumption can climb, and edge damage becomes more likely if the rotor has runout, the bed knife is not perfectly parallel, or the feed contains contamination. What looks like a “high-efficiency” setting can quickly become an expensive one if it accelerates wear or causes chipping.
💡 Technical Tip: A small clearance does not automatically mean better cutting. For many plastics, stable geometry and sharp edges are more important than chasing the narrowest possible gap
🛠️Maintenance Note: If operators keep tightening the gap to restore cutting performance, the real problem may be dull knives, poor sharpening geometry, or alignment error rather than clearance itself.
Recommended Starting Clearance by Material Type
The table below is a practical starting reference for plastic granulator or crusher knife setup. These values should be used as initial settings with sharp knives and proper alignment, then fine-tuned during trial running.
| Material Type | Recommended Starting Clearance (mm) | Practical Note |
|---|---|---|
| Plastic film / thin sheet | 0.10–0.18 | Thin material usually benefits from a smaller gap to reduce pulling, stringing, and heat |
| Soft plastics (PE/PP) | 0.15–0.25 | Start with clean shearing first, then fine-tune if wrapping or temperature rise appears |
| Hard plastics (ABS/PC) | 0.15–0.25 | Hard materials normally depend more on sharpness and rigidity than on a deliberately large gap |
| Thick-wall materials (HDPE drums, thick pipes) | 0.20–0.35 | Heavy-duty machines may allow more clearance, but the OEM manual should be checked first |
| Mixed plastics | 0.20–0.30 | Start in the middle range, then correct based on trial results and dominant material behavior |
These numbers are useful because they keep operators away from two common mistakes: using the same clearance for every material, and assuming that a poor cut can always be fixed by simply opening or closing the gap.
How to Measure Rotor and Bed Knife Clearance Correctly
A clearance number is only useful when it is measured consistently. Before adjustment, lock out the machine, clean the cutting chamber, remove trapped plastic, and make sure the rotor knives and bed knives are properly seated and tightened. Never use clearance measurement to compensate for loose hardware, damaged knife seats, or badly worn edges.

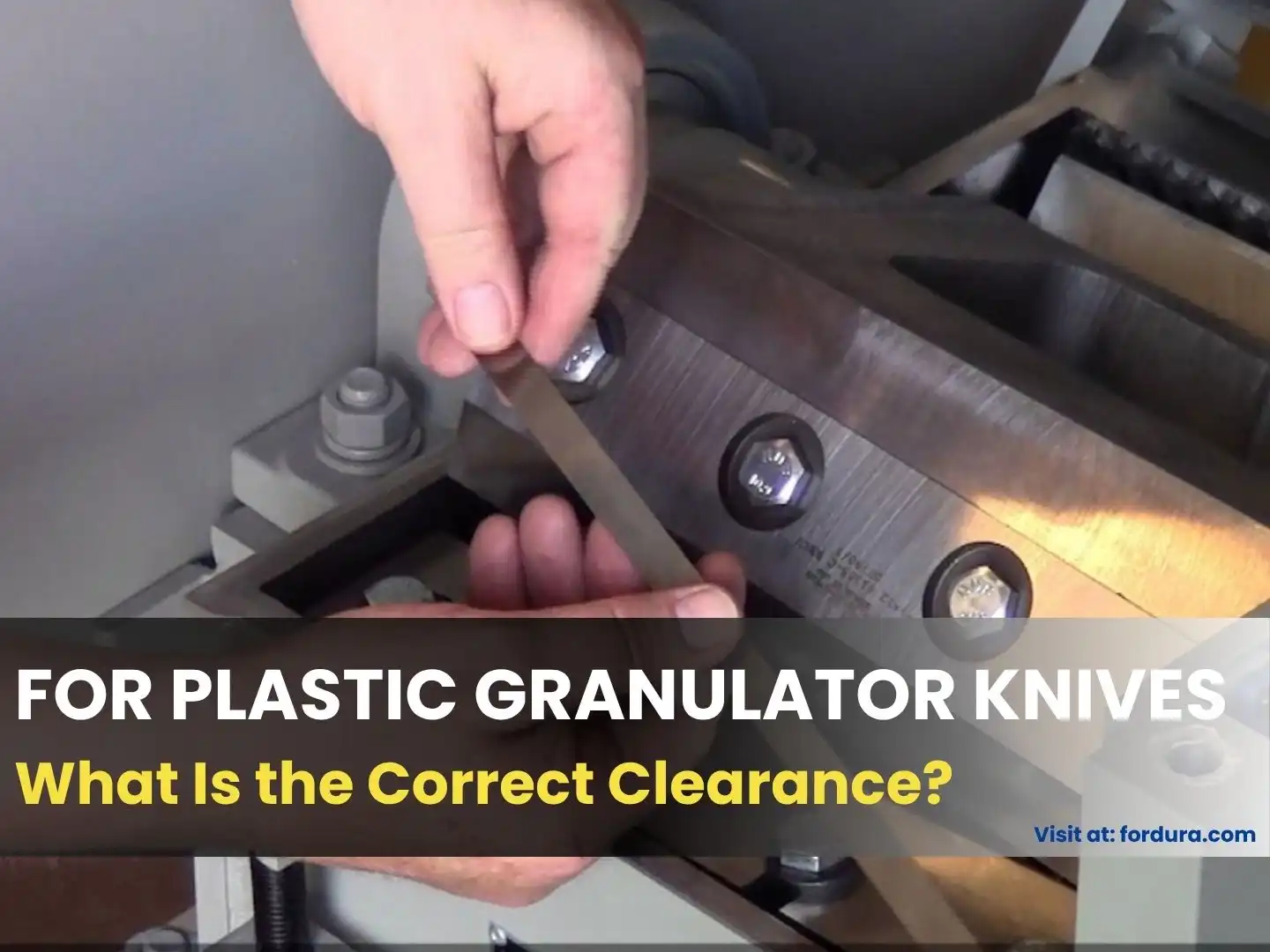

For most maintenance teams, a feeler gauge is the most practical tool for checking the rotor-to-bed knife gap. The measurement should not be taken at only one point. Check the left side, center, and right side of the knife length, and repeat the check across the cutting width if the machine design allows it. A machine that measures correctly in the center but is too tight at one end may still produce heat, uneven wear, or contact risk.
If the rotor has visible runout, the bed knife is not parallel, or the knife seat is damaged, the measured clearance will not represent the real working gap under load. In that case, correct the mechanical condition before tightening the knives further. The machine builder’s manual should always be treated as the primary reference, and the values in this guide should be used as practical starting ranges for trial adjustment.
Material-by-Material Adjustment Logic
Thin Film and Thin Sheet
Film and very thin sheet are sensitive to pulling, stretching, and heat buildup. If the gap is too large, the knife may drag the material before it cleanly shears it. The result is often stringy cut edges, unstable feeding, and higher chamber temperature. A tighter starting range such as 0.10–0.18 mm usually gives better control.
That said, film lines can also punish over-tight settings. If the machine starts rubbing, making excessive heat, or showing signs of knife contact, the problem is not that film “needs zero clearance.” It means the machine must balance cut precision with rotor stability and parallelism.
Soft Plastics: PE and PP
Soft plastics often create confusion because operators see wrapping or smearing and immediately try to open the gap. In reality, the first goal is still to achieve a clean shear. A starting range of 0.15–0.25 mm is usually more reliable than a loose setting. After startup, the adjustment should depend on what the machine shows: wrapping tendency, heat, amperage, and cut uniformity.
If PE or PP begins to smear, check the knife edge condition and chamber heat before assuming that clearance alone is the cause. Soft plastics react strongly to dull edges and friction.
Hard Plastics: ABS and PC
Rigid plastics such as ABS and PC often make people think they need a larger gap because the material feels harder. In many cases, that is the wrong direction. Hard plastics usually respond better to sharp edges, adequate machine rigidity, and controlled alignment than to an intentionally wide gap. A starting range of 0.15–0.25 mm is commonly effective.
If chipping appears, the cause may be blade steel, sharpening quality, contamination, or impact loading rather than the gap value by itself. Clearance matters, but it should not be used to mask edge weakness.
Thick-Wall Materials: HDPE Drums and Heavy Sections
Thicker and heavier plastic parts put more load on the machine during entry and breakup. That is why a starting range of 0.20–0.35 mm is often more practical, especially on heavy-duty granulators or crushers. The purpose is not to make the cut loose, but to give the system enough tolerance under load while maintaining controlled shearing.
For large HDPE drums, thick-wall pipe, or bulky regrind, the final setting must also account for rotor strength, knife projection, chamber loading, and the machine builder’s recommended limits.
Mixed Plastic Streams
Mixed material is where fixed theories usually fail. A stream that contains film, rigid regrind, labels, soft packaging, and occasional thick sections cannot be optimized with a single-material mindset. In that case, a 0.20–0.30 mm midpoint is often the most practical starting point. From there, the machine should be tuned based on the dominant failure mode: heat, dust, unstable size, stringing, or excessive knife wear.
For mixed streams, the goal is not to create a perfect cut for every single piece. The goal is to find a stable operating window with acceptable quality, wear, and throughput.
Clearance Is Only a Starting Point: What Changes the Final Setting?
The same material may require a different final clearance on different machines. That is why field adjustment must consider more than plastic type alone.
| Factor | Why It Changes the Final Clearance Decision |
|---|---|
| Knife sharpness | A dull edge often behaves like a wrong gap and creates tearing, heat, and unstable cutting |
| Rotor runout | Even a good nominal setting becomes risky if the rotor does not run true |
| Bed knife parallelism | Uneven alignment creates local tight spots and uneven wear |
| Machine rigidity | Lighter frames are less tolerant of aggressive settings than heavy-duty machines |
| Material cleanliness | Contamination or hard inclusions require more caution than clean in-house scrap |
| Throughput target | Higher loading can reveal heat and wear issues that are invisible at low trial volume |
| Screen size and airflow | Downstream resistance can change chamber behavior and cutting temperature |
💡 Pro Tip: If two machines run the same plastic but one requires a wider operating window, the difference is often mechanical condition rather than material science.
Field Diagnosis Table: What Cutting Symptoms Reveal About Knife Gap
In real granulator operation, clearance problems rarely appear as a number on a gauge first. They usually appear as changes in cutting behavior: more heat, more dust, stringy edges, rising motor amps, uneven knife wear, or unstable granule size.
The table below should be used as a field diagnosis guide, not as a reason to adjust the gap blindly. If one symptom does not improve after a small clearance correction, inspect knife sharpness, bed knife parallelism, rotor runout, feed contamination, and blade material before making repeated changes.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Stringy cut, pulling, stretching | Clearance too wide, edge dull, film-like behavior | Reduce gap carefully and inspect edge sharpness |
| Excessive heat in chamber | Gap too tight, rubbing, dull knives, overloaded chamber | Open gap slightly, inspect knife condition, reduce load if needed |
| Dust or fines increase | Material is being rubbed or fractured instead of cleanly sheared | Recheck gap, sharpening quality, and knife alignment |
| Rising motor amps | Gap too tight, chamber overload, poor knife geometry | Verify parallelism and adjust in small steps |
| Chipping or nicking | Contamination, edge weakness, contact risk, wrong steel | Inspect feed cleanliness, blade material, and rotor condition |
| Uneven wear across blade width | Bed knife not parallel, rotor runout, installation error | Reset alignment before changing the nominal gap again |
| Throughput drops after short run | Heat buildup, dull edges, gap no longer effective under load | Check real operating temperature and re-evaluate knife condition |
If the machine is already showing fast wear, rising dust, unstable cut quality, or abnormal heat, this granulator blade troubleshooting guide can help determine whether the root cause comes from clearance, edge condition, alignment, or material mismatch.
Step-by-Step Blade Clearance Adjustment Procedure
A good adjustment method is more important than chasing a fashionable number. The process below is simple, repeatable, and suitable for most plastic granulator maintenance routines.
1. Lock out the machine and clean the chamber
Remove residue, melted buildup, and trapped particles before measuring anything. Dirt in the chamber can create false readings.
2. Inspect the knives before setting the gap
Do not set clearance on badly worn or damaged knives and expect a stable result. Check for edge rounding, chipping, uneven sharpening, knife straightness, and secure mounting.
3. Set the initial clearance by material type
Use the recommended range as a starting point:
- Film / thin sheet: 0.10–0.18 mm
- PE / PP: 0.15–0.25 mm
- ABS / PC: 0.15–0.25 mm
- HDPE drums / thick-wall parts: 0.20–0.35 mm
- Mixed plastics: 0.20–0.30 mm
4. Confirm uniformity across the full knife length
A single measurement point is not enough. Check multiple positions along the knife width. The actual problem is often unevenness, not the nominal number.
5. Rotate by hand and verify no contact risk
Before startup, rotate the rotor manually if the machine design allows it. Any suspicious tight point should be corrected before power-on.
6. Run a controlled trial with real material
Do not judge clearance only at idle. Use the actual scrap type and observe:
- cut quality
- heat
- amperage
- dust level
- wrapping tendency
- knife noise
7. Fine-tune in small increments
Avoid large jumps. Small changes are easier to evaluate and less likely to create secondary problems. Record the previous setting and machine response after each correction.
8. Record the final setting by material family
A machine that processes several plastic types should have a practical internal record. That reduces setup time and improves consistency across shifts.
⚠️Service Reminder: When the clearance looks correct but cutting quality still drops, the issue may be blade geometry rather than the gap itself. This guide on how to sharpen granulator blades explains what proper regrinding should restore.
Common Mistakes That Shorten Blade Life
One of the most common mistakes is using clearance to compensate for another problem. Operators may open the gap because of heat, when the real cause is dull knives. They may tighten the gap because the cut looks weak, when the real cause is poor sharpening geometry. They may keep adjusting both directions without results, when the real issue is bed knife alignment or rotor runout.
Another frequent mistake is assuming hard plastics need a big gap. In practice, rigid materials often demand better edge retention and stronger mechanical stability, not a sloppy knife setting. Clearance should support the cut, not replace proper knife quality.
Clearance alone also cannot compensate for the wrong blade steel. If hard plastics are causing chipping or rapid edge loss, this granulator blade material selection guide helps match the steel grade to the real working condition.
Quick Startup Checklist
Before starting the granulator after clearance adjustment, confirm the following points:
– [ ] The cutting chamber is clean and free of residue, melted plastic, and trapped particles.
– [ ] Rotor knives and bed knives are sharp enough for accurate adjustment.
– [ ] Knife mounting bolts and hardware are secure.
– [ ] Clearance has been checked at multiple positions, not only at the center.
– [ ] The rotor can turn by hand without suspicious tight spots or contact risk.
– [ ] The trial material matches the real production plastic.
– [ ] Heat, dust level, motor amps, cutting sound, and granule quality are observed during startup.
– [ ] The final setting is recorded by material type for future repeatability.
When the Real Problem Is Not Clearance
Not every poor cutting result comes from the gap itself. In many cases, “clearance trouble” is only the visible symptom of another issue:
- wrong blade material for the plastic stream
- poor sharpening accuracy
- insufficient knife hardness or toughness
- rotor imbalance or runout
- bed knife installation error
- contamination in the feed
- overloaded chamber or restricted discharge
This is why experienced operators do not isolate clearance from the rest of the cutting system. The most economical machine is not the one with the smallest gap. It is the one with the right combination of steel, geometry, alignment, clearance, and maintenance discipline.
Frequently Asked Questions
Choosing the correct rotor and bed knife clearance is one of the most common setup questions in plastic granulation. These FAQs answer the practical concerns buyers, operators, and maintenance teams usually face in the field.
